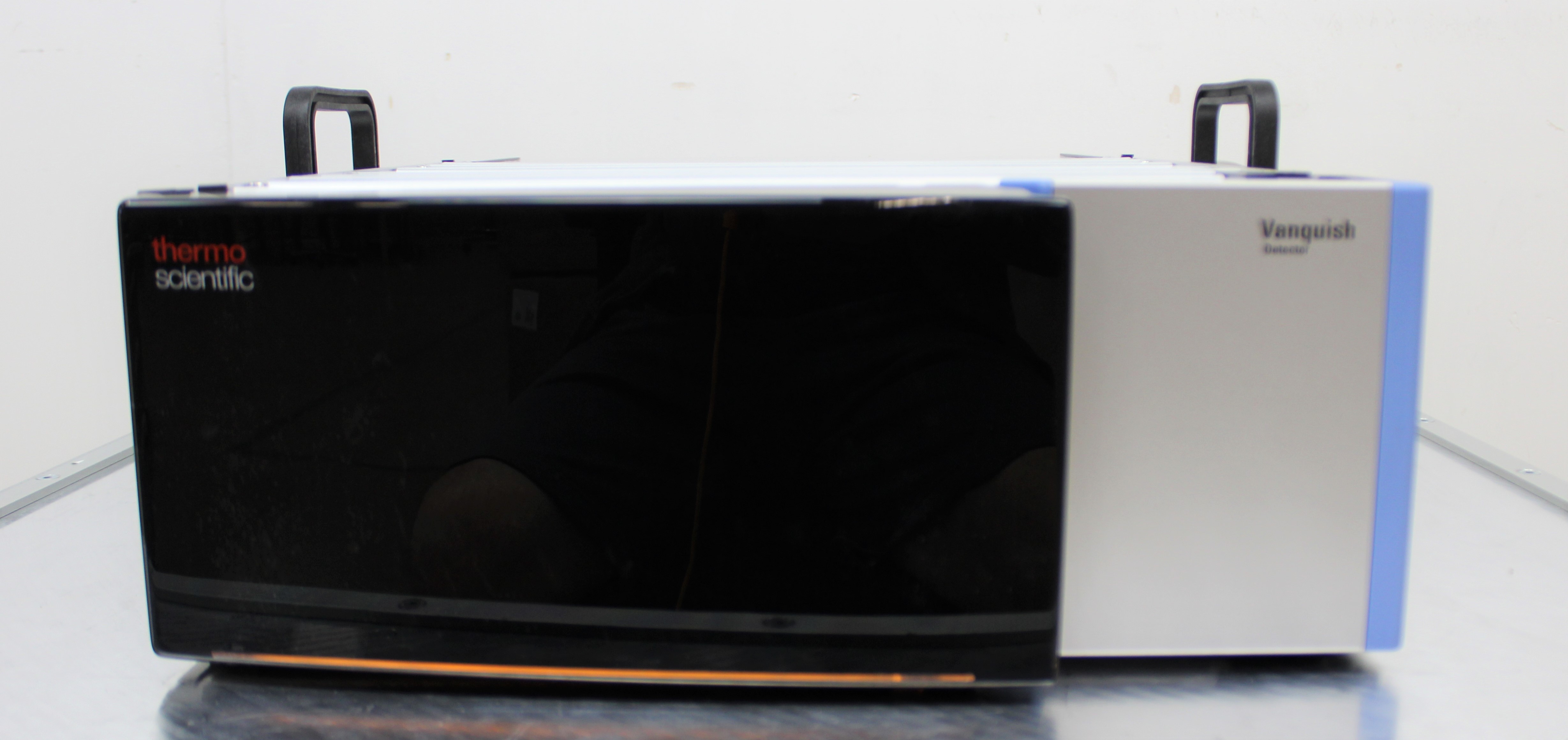

Thermo Vanquish Diode Array Detector CG (Model VC-D11-A-01), manufactured in 2019, S/N 8319681. This used DAD is in Good condition: powers on and completes basic self-checks, but has not been fully tested; offered AS-IS. Flow cell is not included. Designed for HPLC and UHPLC UV Vis detection, the Vanquish DAD CG delivers excellent linearity with an ultra-wide dynamic range, enabling measurement of main analytes alongside trace impurities. LightPipe technology combines a very long optical path with low dispersion for improved signal-to-noise and low baseline noise. Specifications include 190–800 nm wavelength range, up to 125 Hz data rate, single-beam optics, and up to 8 channels. Integrated holmium oxide filter supports wavelength verification, and a USB 2.0 interface with a 3-port hub simplifies stacking with other Vanquish modules. Power: 100–240 VAC, 50/60 Hz, max 250 W. Dimensions 6.3 x 16.5 x 24.4 in; approx. 35.2 lb. Made in Germany.

Technician comment

**Doesn't include flow cell

Key Features

• UV Vis diode array detection for HPLC and UHPLC workflows
• Wavelength range 190–800 nm for broad analyte coverage
• Data collection rate up to 125 Hz for fast chromatography
• Up to 8 channels; single-beam optical design
• LightPipe technology for low noise, long light path, minimal dispersion
• Ultra-wide dynamic range captures main peaks and trace impurities
• Integrated holmium oxide filter for wavelength validation
• USB 2.0 with 3-port hub to connect additional Vanquish modules
• Power input 100–240 VAC, 50/60 Hz, max 250 W
• Flow cell required for operation; not included in this listing

Specifications

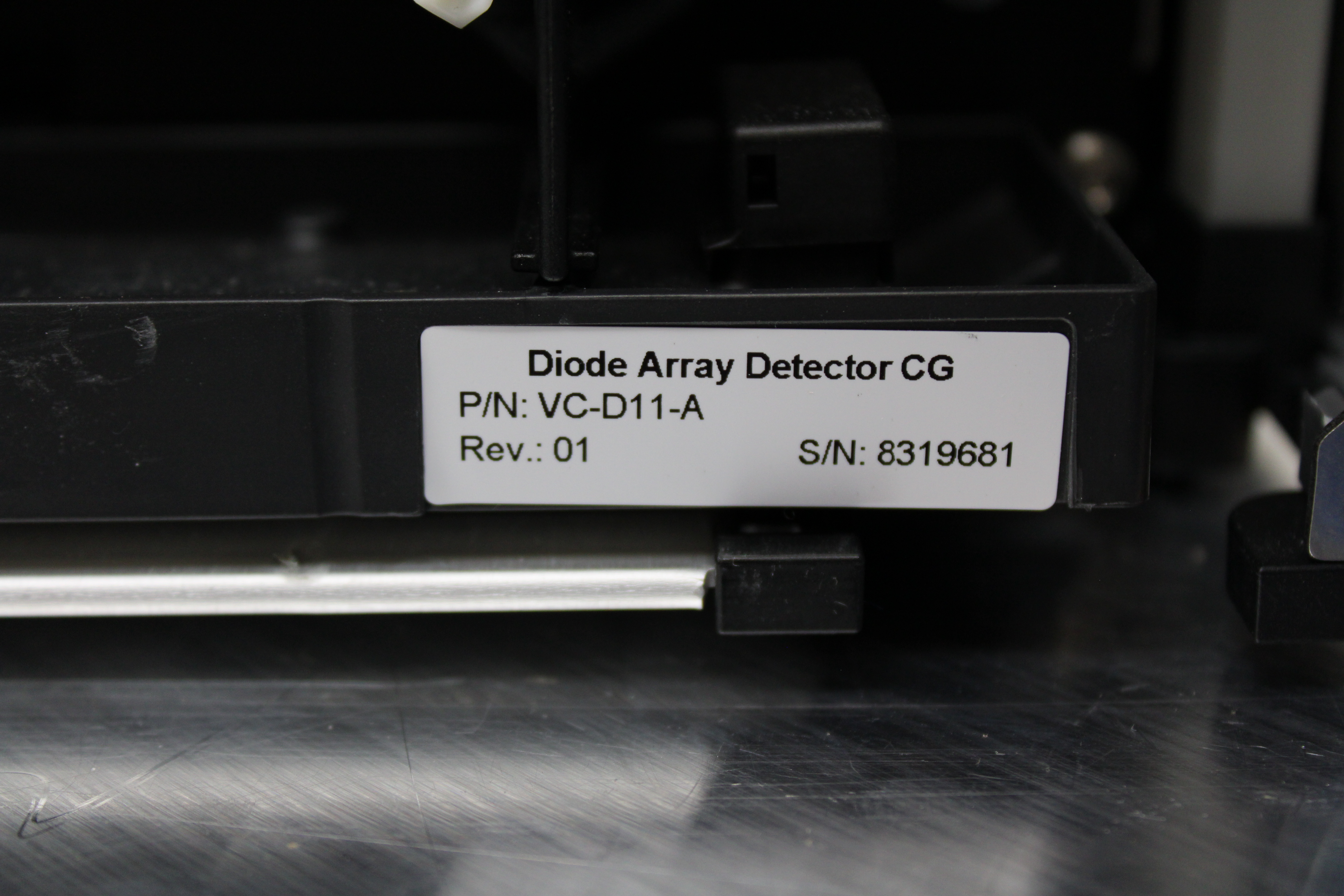

• Make and Model: Thermo Vanquish Diode Array Detector CG (VC-D11-A-01)
• Year of Manufacture: 2019-10-21
• Serial Number: 8319681
• Condition: Used, Condition Class G (Good); powers on and passes basic checks; unable to fully test; sold AS-IS
• Flow Cell: Not included (required for operation)
• Detection Principle: UV Vis diode array, single-beam
• Wavelength Range: 190–800 nm
• Data Collection Rate: Up to 125 Hz
• Channels: Up to 8
• Optics: Thermo LightPipe technology for long optical path and low dispersion
• Dynamic Range: Ultra-wide, suitable for high-concentration analytes and trace-level impurities
• Wavelength Validation: Integrated holmium oxide filter

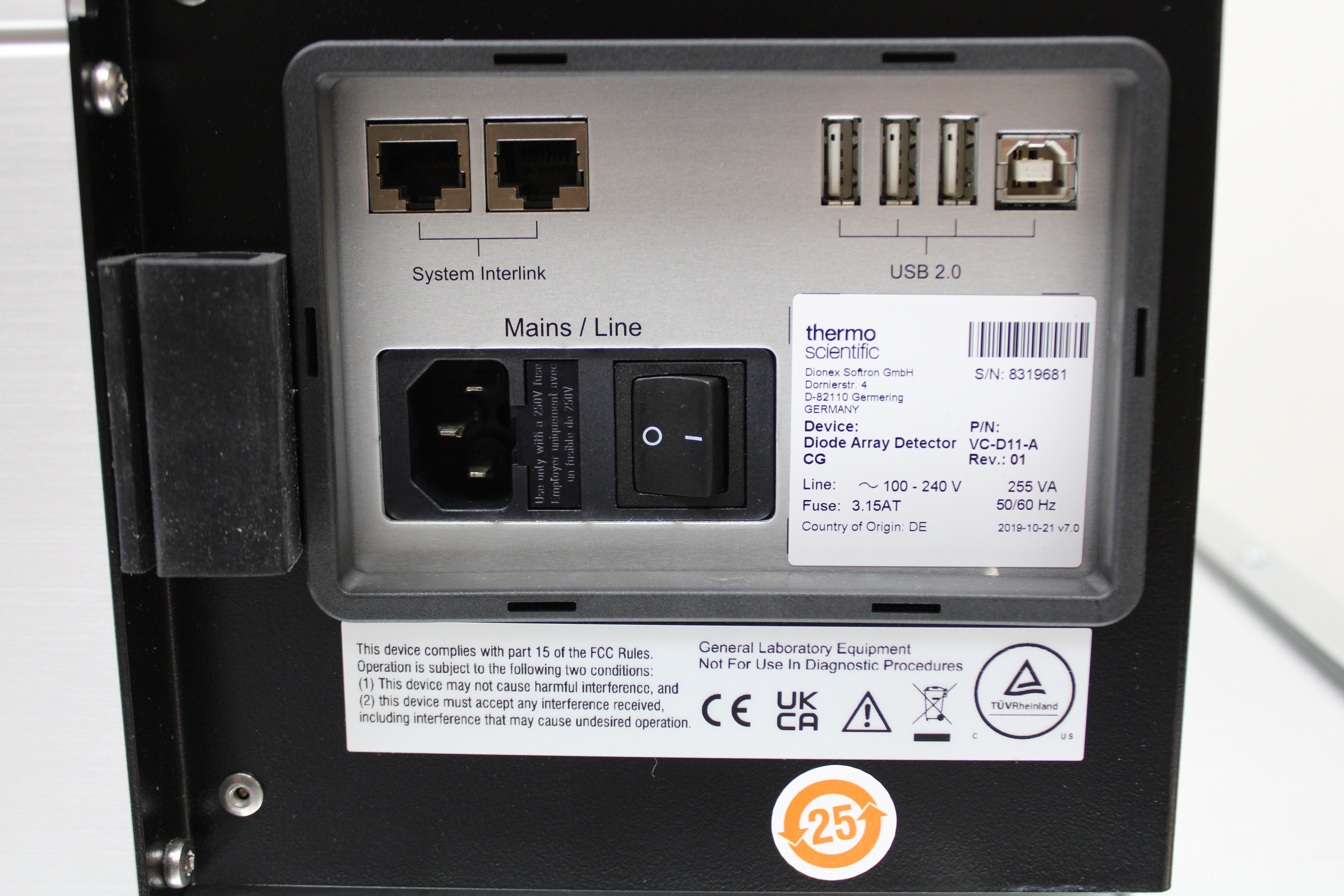

• Connectivity: USB 2.0; integrated 3-port hub for Vanquish module stacking
• Power Requirements: 100–240 VAC, 50/60 Hz, max 250 W / 255 VA
• External Dimensions: 6.3 x 16.5 x 24.4 in (L x W x H); approx. 16.0 x 41.9 x 62.0 cm
• Weight: Approx. 35.2 lb (16 kg)
• Country of Origin: Germany
• Typical Applications: HPLC and UHPLC UV Vis detection for pharma QC, method development, impurity profiling, stability studies, and general analytical chromatography

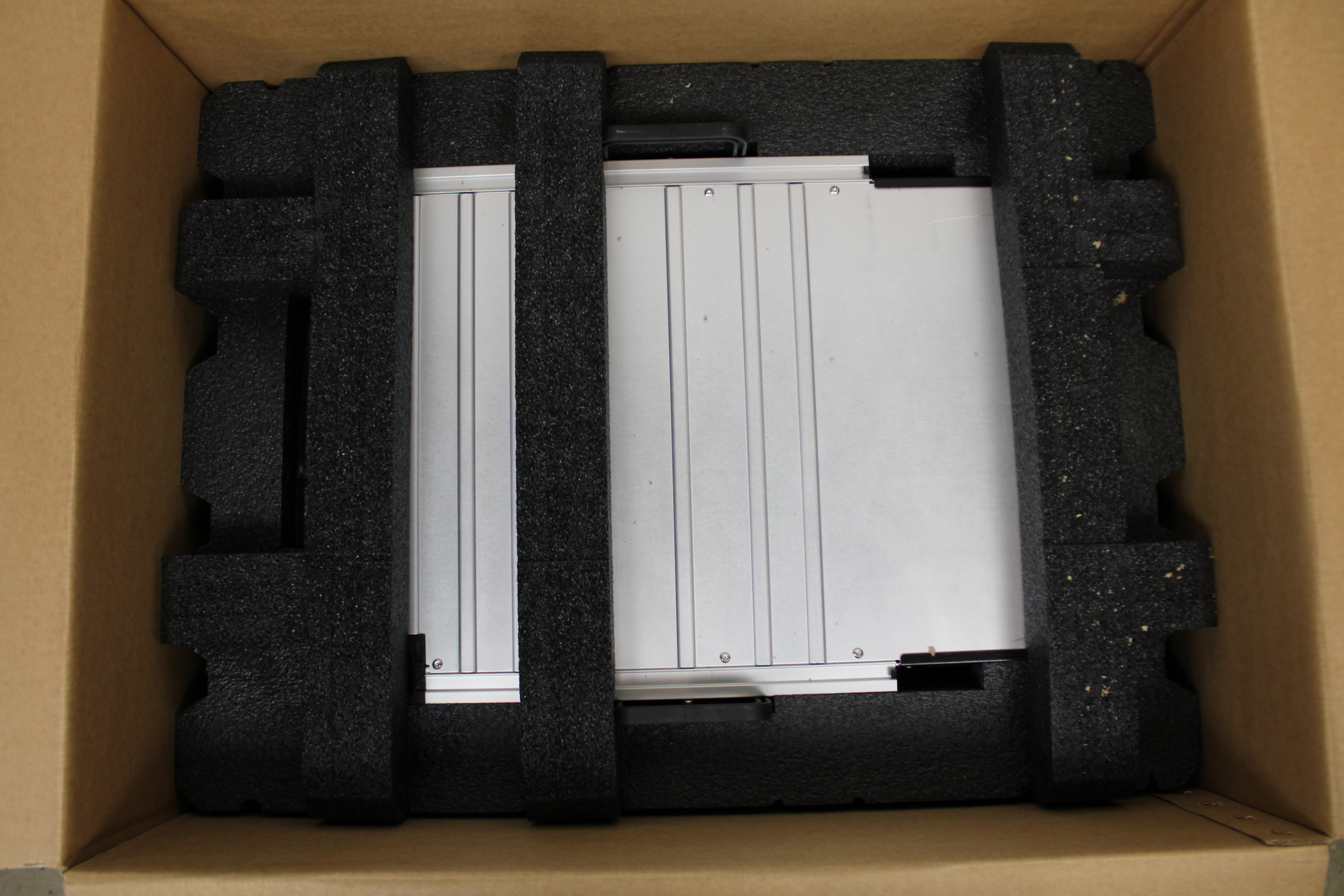

• Shipping Dimensions and Weight: Approx. 37.8 x 28.3 x 17.5 in; ~66.1 lb

Weight

Imperial: 42.24 Pounds

Metric: 19.16 Kilograms

Shipping Dimensions

Imperial: 7.56 lb x 19.8 lb x 29.28 lb

Metric: 19.2 cm x 50.29 cm x 74.37 cm

Harmonized Code

902750

Harmonized Code Details

9027.50 Instruments and apparatus using optical radiations ultraviolet or visible. This DAD is a UV Vis optical detector for chemical analysis in liquid chromatography, fitting this classification.
