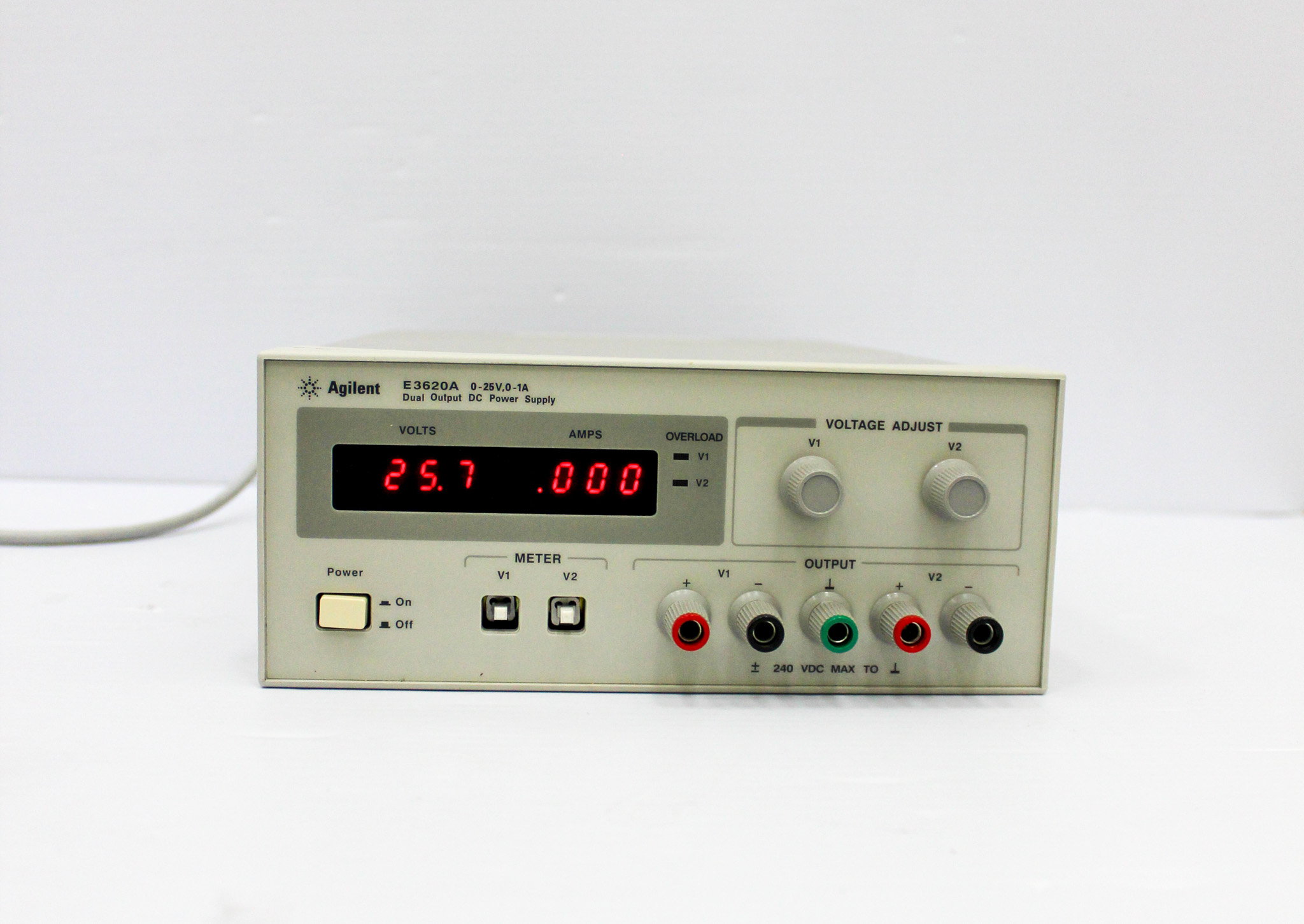

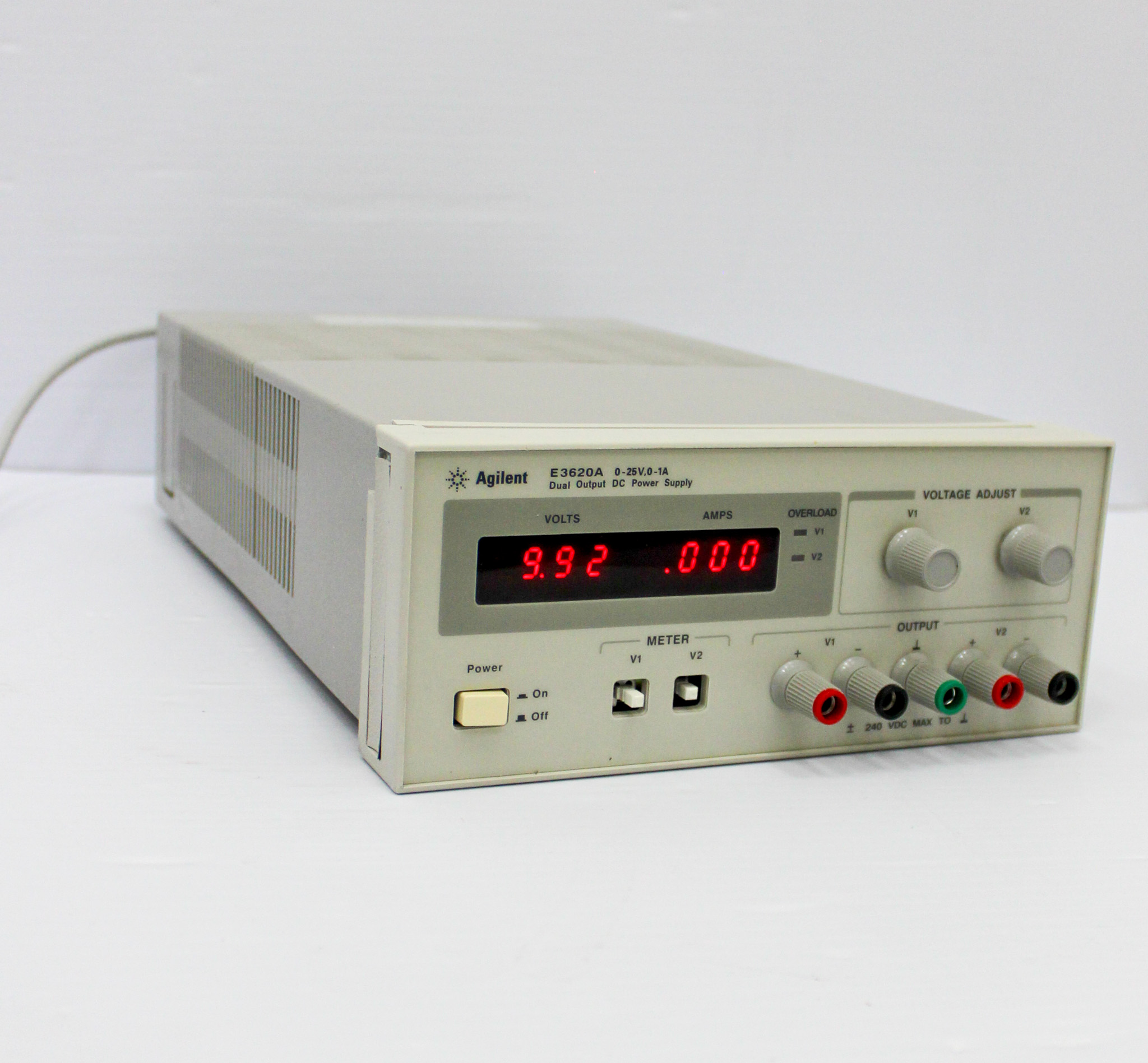

The Agilent E3620A Dual Output DC Power Supply, manufactured in the United States, is a compact and efficient power supply ideal for electronics testing and circuit protection tasks. It features two independent, isolated 0-25V, 1A outputs with separate digital panel meters, enabling simultaneous voltage and current monitoring. The 10-turn pots allow for precise adjustments, and its robust design is tested to specifications. Although it shows minor cosmetic wear and is missing two meter buttons, its usability and functionality remain unaffected. The unit includes a power cord and promises reliable performance with low ripple and noise, excellent line regulation, and fast transient response. This bench-top model is ideal for laboratory, educational, and industrial applications where space is a premium.

Key Features

• Dual 0 to 25V, 1A outputs
• Separate digital panel meters for voltage and current
• Compact bench top design
• 0.01% line and load regulation
• Low ripple and noise <350 Vrms/1.5 mV p-p
• Fast transient response time

Specifications

• Power Rating: 50W
• Mounting Type: Bench Top
• Output Voltage: Dual 25V
• Output Current: Dual 1A
• Line and Load Regulation: 0.01% +2 mV
• Input Voltage: 115 VAC
• Ripple and Noise: <350 Vrms/1.5 mV p-p
• Compact Dimensions: Fits efficiently on lab benches

Weight

Imperial: 14.4 Pounds

Metric: 6.53 Kilograms

Shipping Dimensions

Imperial: 19.2 lb x 10.8 lb x 4.8 lb

Metric: 48.77 cm x 27.43 cm x 12.19 cm

Harmonized Code

850440

Harmonized Code Details

Harmonized code 850440 covers electrical transformers, static converters, and inductors, including power supplies. This code applies to the Agilent E3620A due to its function as a DC power supply.
