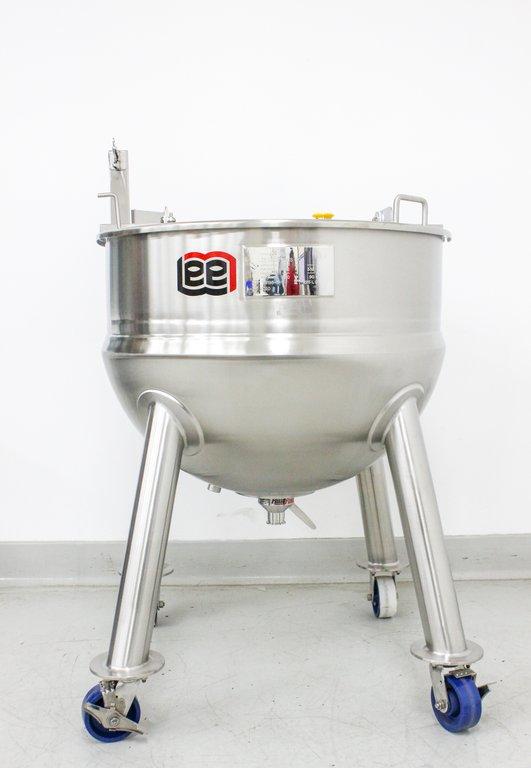

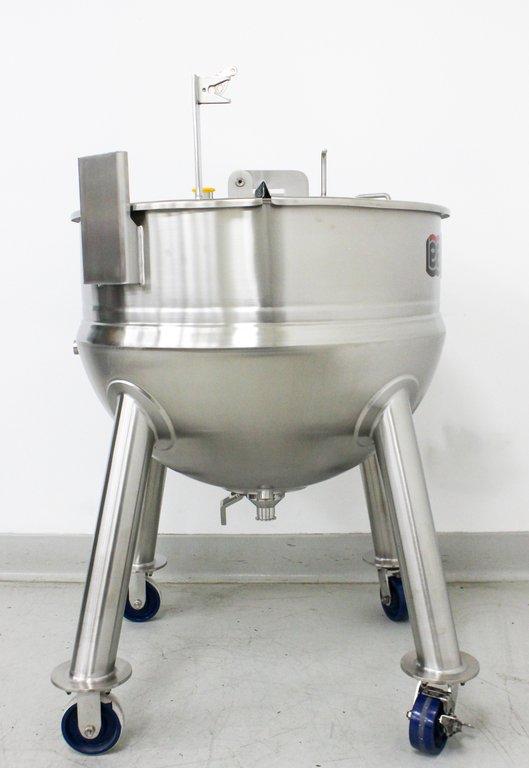

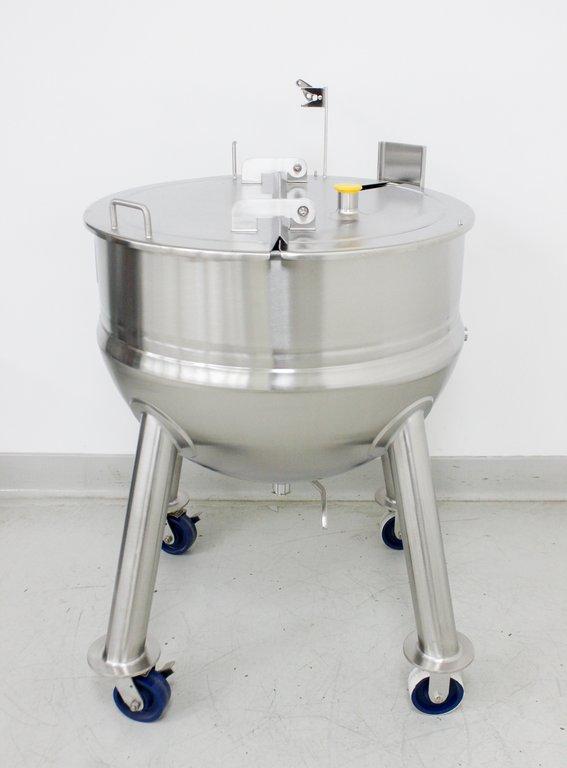

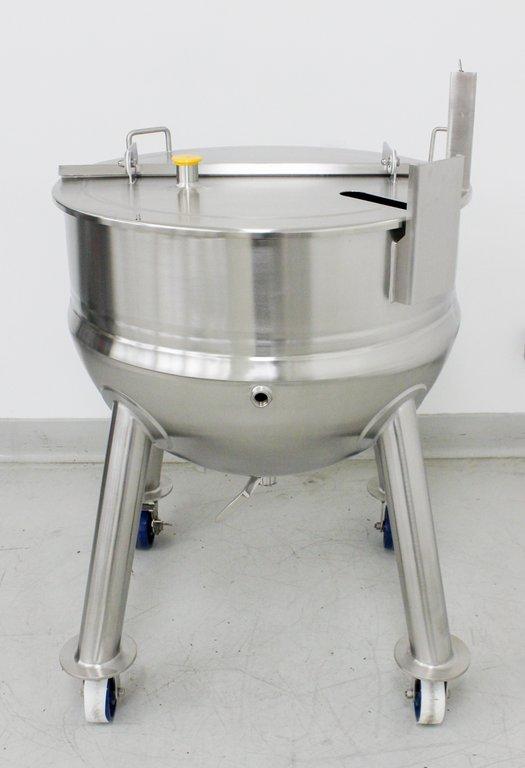

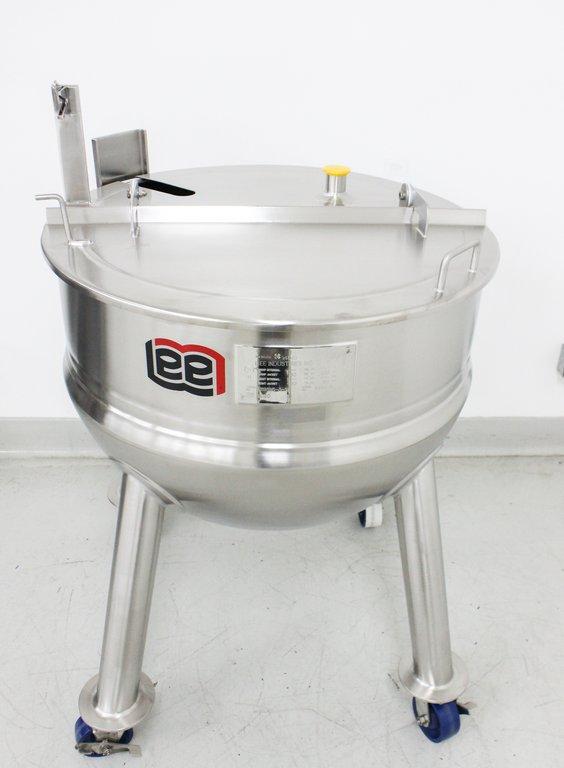

The Lee Industries 225 LD Kettle is an excellent condition, 225-liter capacity, jacketed kettle constructed from 316 stainless steel. This model is crafted with a unique hemispherical bottom for optimal mixing and includes a heating and cooling jacket. Built in the United States to ASME standards, this kettle is suitable for various industrial applications. It features a flip-up cover, a 1½" tri-clamp center bottom discharge with ball valve, and is mounted on a tubular leg frame with locking casters for mobility. With a Maximum Allowable Working Pressure (MAWP) of 90 PSI at 332°F and a Minimum Design Metal Temperature (MDMT) of -20°F at 90 PSI, this versatile kettle can be customized to accommodate specific process needs and facility limitations. This kettle does not include additional equipment such as a computer.

Key Features

• 225 liter capacity
• 316 stainless steel construction
• Hemispherical bottom for optimal mixing
• Heating and cooling jacket

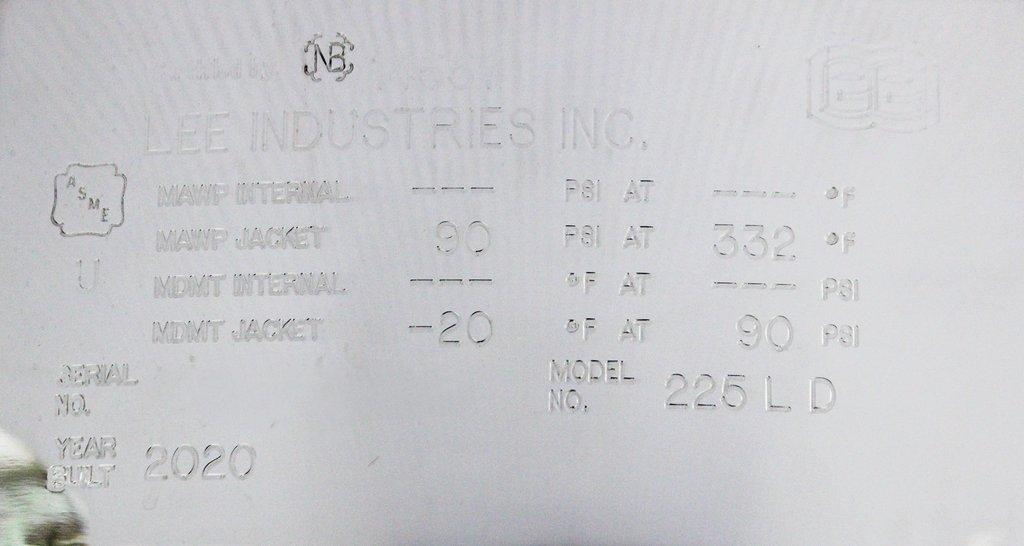

• MAWP: 90 PSI at 332°F
• MDMT: -20°F at 90 PSI

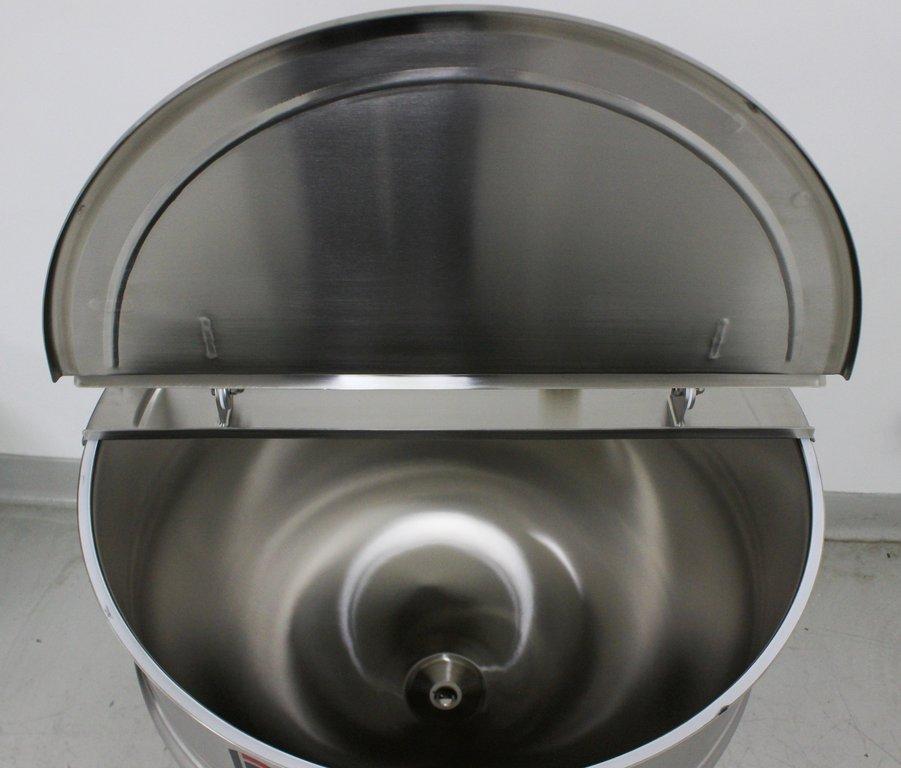

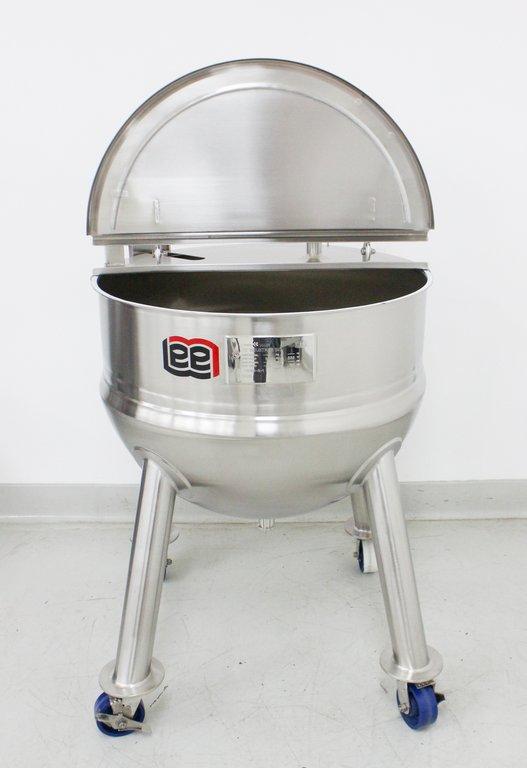

• Flip-up cover with ball valve
• Mounted on tubular leg frame with casters
• ASME certified

Specifications

• Capacity: 225 liters
• Material: 316 Stainless Steel
• Vessel Dimensions: 32 inch diameter x 24 inch deep
• Discharge: 1½ inch tri-clamp center bottom with ball valve
• Frame: Tubular with locking casters
• MAWP: 90 PSI at 332°F
• MDMT: -20°F at 90 PSI
• Finish: High-polished sanitary
• Jacket Pressure: 90 PSI

Weight

Imperial: 360.0 Pounds

Metric: 163.29 Kilograms

Shipping Dimensions

Imperial: 42.0 lb x 42.0 lb x 63.6 lb

Metric: 106.68 cm x 106.68 cm x 161.54 cm

Harmonized Code

84198920

Harmonized Code Details

84198920 - Machinery, plant or laboratory equipment for mixing or kneading containing heating or cooling devices. This code is appropriate due to the kettle's features for mixing with integrated heating/cooling capabilities, applicable to the chemical and industrial sectors.
